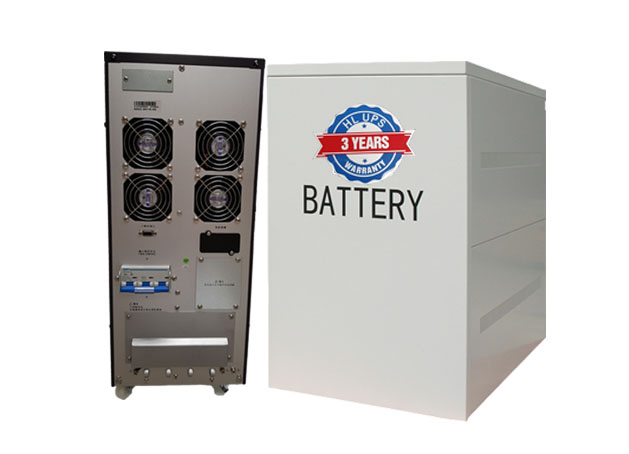

UPS online HL-3C15K/12000w

  • UPS online HL-3C15K/12000w
  • 55.800.000₫

Thông tin sản phẩm

UPS MODEL   HL-3C15KS
Rated capacity 15KVA/12KW
INPUT
Wire method Single phrase or three phase earth ground
Rated voltage 380VAC
Normal Voltage 120VAC - 275VAC ±5
Rated Freq 50HZ
Frequency Range (45- 55)HZ±0.5HZ
Bypass range 187VAC-264VAC
BAT
Rated bat Voltage 192VDC
Battery capacity*Quantily 12VDC*16PCS
AC OUTPUT
Output system Single phrase & earth ground
OutPut voltage 220VAC±3%
Output frequency 50HZ±1%
Dynamic voltage transient range <5%
Dynamic transient restore <60ms
Waveform Sine ware THD<3%(linear load) Sine ware TDH<8%(nonlinear load)
Input power factor 0.8
Overload capability 105%-125% 30s to Bypass
Communications RS232(turn to 485), Intelligelt slot
Net weight
Dimensions 248*500*616mm
Environmental
Ambient temperature ­10ᵒC - +40ᵒC
Altiude Lower than 1000m: no derating Over 1000m: 1% derating for every 100m rise
Storage temperature ­15ᵒC - + 45ᵒC

HL -UPS ONLINE TỪ 6KVA - 20KVA ĐƯỢC BẢO HÀNH 36 THÁNG CHO BỘ XỬ LÝ VÀ 24 THÁNG CHO ẮC QUY
