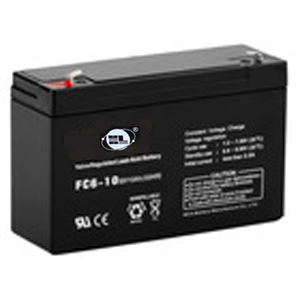

Acquy HL10 - 6; 6v-10ah

JP6-10

Type:

lead acid batteries

Nominal Voltage:

6V

151*51*94 mm

Nominal

10AH

Terminal:

F1

Battery Construction & Raw Material

Performance Characteristics

Nominal Voltage …………………………………… 6V

Positive plate………………………………Lead dioxide

Number of cell ………………………………………3

Negative plate…………………………… Lead

Design Life (Solar/wind power) ………………… 5 years

Container………………………………     ABS

Nominal Capacity 77°F(25°C)

Cover……………………………………   ABS

20 hour rate (0.50A,5.25V) ………………………… 10Ah

Safety valve……………………………     Rubber

10 hour rate (0.93A,5.25V) ………………………… 9.3Ah

Terminal………………………………     Copper

5 hour rate (1.7 A,5.25V)…………………………   8.5Ah

Separator………………………………   Fiberglass

1 hour rate (6.5A,4.80V) ……………………………6.5Ah

Electrolyte………………………………   Sulfuric acid

Internal Resistance

Fully Charged battery 77°F(25°C) …………………15 mΩ

Dimensions and Weight

Self-Discharge

3% of capacity declined per month at 20°C(average)

Length ( mm / inch )……………………………51 / 5.94

Operation Temperature Range

Width ( mm / inch ) …………………………… 50 / 1.97

Discharge ………………………………………… -20~60°C

Height ( mm / inch ) ……………………………93 / 3.66

Charge …………………………………………… -10~60°C

Total Height ( mm / inch )…………………… 98 / 3.86

Storage …………………………………………… -20~60°C

Approx.Weight( Kg / lbs )……………………   1.65 / 3.63

Max.Discharge Current 77°F(25°C)…………… 120A(5s)

Short Circuit Current ………………………………150A
