Acquy HL100-2; 2v-100ah

Acquy HL100-2; 2v-100ah

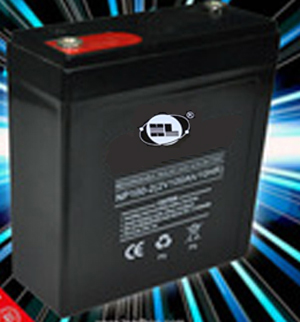

Tên sản phẩm : Acquy HL100-2; 2v-100ah
Mã sản phẩm : HL#21
Danh mục : Acquy viễn thông-Điện lực
Giá : liên hệ
Chi tiết sản phẩm

Model: 2v 100Ah

Dimension: 6.73*2. 83*8.07*8.27 in 171*72*205*210 mm

Weight: 8 kg
Norminal voltage: 2v
Rated capactiy: 100ah/10hr

Features
1 Equalization charges are not required, reducing maintenance and labor costs
2 Our newly developed lead-calcium-tin alloy greatly reduces grid corrosion resulting in extended life

   (15-20 year life expectancy in float service at 20-25°C ambient temperature).
3 Large-sized VRLA Battery Series battery is manufactured in accordance with JIS C 8707 and YD/T 799-2002.
4 Adding water or taking specific gravity measurements are not required. There is also no need for an equalization charge.
5 The container and cover are made of flame retardant plastics which meet UL-94V-0 specifications.



Characteristics

Nominal Capacity (10 hour rate)

100Ah

Capacity

25°C(77°F)

10 hour rate (10A)

100Ah

3 hour rate (25A)

75Ah

1 hour rate (55A)

55Ah

Internal Resistance

Full Charged Battery 25°C(77°F)

2 mΩ

Cyclic Life

50%(C10) Depth of discharge

600Times

Float Life

25°C(77°F) Float charge at 13.8V

About   10 Years

Capacity affected by Temperature

(10 hour )

40°C (104°F)

102%

25°C (77°F)

100%

0°C (32°F)

85%

-15°C (5°F)

65%

Self-Discharge

25°C(77°F)

Capacity after 3 month storage

90%

Capacity after 6 month storage

80%

Capacity after 12 month storage

62%

Charge (Constant Voltage) 25°C(77°F)

Cycle

Initial Charging Current Less than 30A

 Voltage 2.43-2.50V

Float

Voltage 2.25-2.30V
